When assessing software, we often consider whether it is “enterprise-ready,” evaluating its scalability, resilience, and reliability. Achieving these criteria requires consideration of best practices and standards, centered around technology and architecture.
Enterprise software architecture is the backbone of digital transformation and business agility, providing proven structural frameworks for building scalable and resilient applications. Rooted in industry experience, these patterns offer standard solutions to common challenges. This guide explores essential enterprise architecture patterns, their pros and cons, and practical advice for selecting the right option. Understanding these patterns is key to creating high-quality software that is fit for enterprise use.
What are enterprise architecture patterns?
Enterprise architecture patterns are standardized, reusable solutions for common structural issues in organizational software development. While smaller-scale design patterns target specific coding problems, enterprise architecture patterns tackle broader, system-wide concerns such as component interaction, data flow, and scalability for enterprise demands.
These conceptual templates provide guidance to developers and architects in structuring applications to meet complex business requirements while maintaining flexibility for future growth. Just as building architects use established designs, software architects use these patterns to make sure their applications can withstand changing business needs. Enterprise architecture patterns typically address:
- System modularity and organization
- Component coupling and cohesion
- Scalability and performance
- Maintainability and testability
- Security and compliance
- Integration with other enterprise systems
Why architecture patterns matter in enterprise software
System design and implementation often present various problems, and there are usually multiple solutions to choose from. This abundance of options can be overwhelming. Architecture patterns are important because they provide architects and developers with a strategic advantage by helping them understand various approaches. Following these patterns offers several benefits across different areas. Here’s why knowing and applying enterprise architecture patterns is crucial:
Reduced technical risk: Well-established patterns have been battle-tested across multiple implementations, reducing the likelihood of structural failures in critical business systems. This proven track record gives stakeholders confidence in the system.
Faster development: Patterns provide ready-made solutions to common architectural problems, so development teams can focus on business-specific requirements rather than solving fundamental structural problems from scratch. This can speed up development cycles.
Better communication: Patterns create a shared vocabulary among development teams, so it’s easier to discuss and document system design. When an architect says “microservices” or “event-driven architecture”, the whole team knows what they mean.
Easier maintenance: Following established patterns results in more predictable, structured codebases that new team members can easily understand and modify. This reduces the learning curve and keeps development velocity even as team composition changes.
Future proofing: Well-chosen patterns provide flexibility for growth and change, so systems can adapt to changing business requirements without requiring complete rewrites. This is especially important in today’s fast-paced business world.
Cost efficiency: By preventing architectural mistakes early in the development process, patterns avoid costly rework and refactoring later. According to industry studies, architectural errors found in production can cost up to 100 times more to fix than those found during design.
With the rapid digital transformation in various industries, the significance of architecture patterns in enterprise software increases. So, what are some common enterprise architecture patterns? You may be familiar with many of the ones we will discuss below. Let’s delve in.
Common enterprise architecture patterns
Here are some common types of enterprise software architectures.
Layered architecture
The layered architecture pattern, also known as n-tier architecture, organizes components into horizontal layers, each performing a specific role in the application. Typically, these include presentation, business logic, and data access layers.
Simple diagram of a layered architecture
The key attributes of this architecture are:
- Components only communicate with adjacent layers
- Higher layers rely on lower layers, not the other way around
- Each layer has a distinct responsibility
This pattern is commonly suited for traditional enterprise applications, particularly those with intricate business rules but straightforward scalability needs. For example, a banking system might have a web interface layer, a business rules layer for transaction processing, and a data access layer for talking to the core banking database.
Microservices architecture
In recent years, the popularity of this pattern has surged because of its numerous advantages. Microservices break down applications into small, independent services that can be developed, deployed, and scaled individually. Each service focuses on a specific business capability and talks to other services through well-defined APIs.

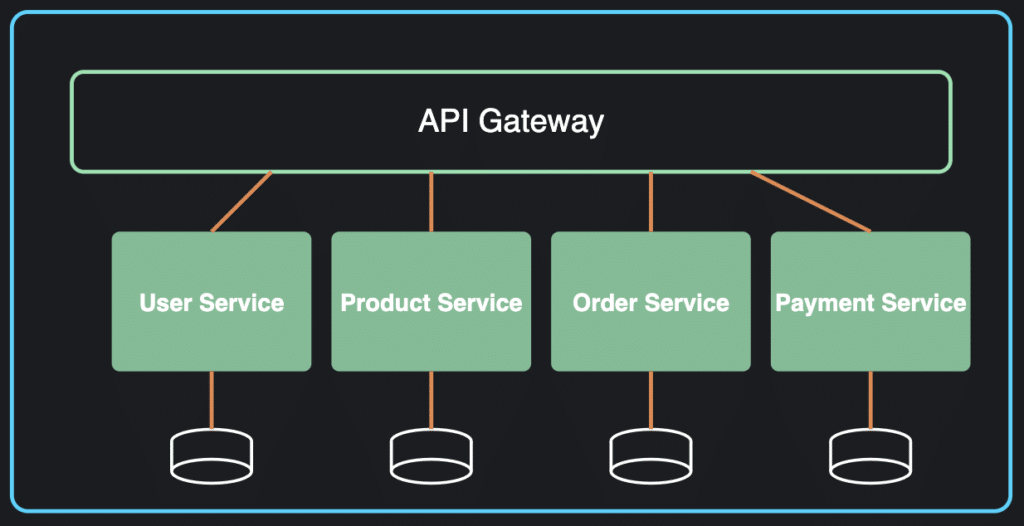

Diagram of a simple microservices architecture
The key attributes of this pattern include:
- Services are loosely coupled and independently deployable
- Each service owns its data storage and business logic
- Services communicate via lightweight protocols (often REST or messaging)
- Enables polyglot programming and storage
Although it brings many advantages, taking a microservices approach and managing it successfully requires a mature DevOps culture, strong observability tools (monitoring, logging, tracing), and careful data consistency strategies to manage the increased complexity and ensure resilience. The distributed nature of microservices introduces challenges in transaction management, service discovery, and failure handling that must be explicitly addressed.
Microservices architectures are ideal for large applications with many different functionalities that benefit from independent scaling and deployment of components. An e-commerce platform is a good example of using microservices. When divided into microservices, this type of system would have separate microservices to manage functionalities for user profiles, product catalog, order processing, and recommendations. Since each is managed separately, different teams can maintain each microservice if desired.
Event-driven architecture
Many modern enterprise applications, especially those dependent on real-time actions, depend on event-driven architectures. Event-driven architecture revolves around the production, detection, and consumption of events. Components communicate by generating and responding to events rather than through direct calls. Much of the time, the underlying services that handle the events leverage the last pattern we chatted about: microservices.

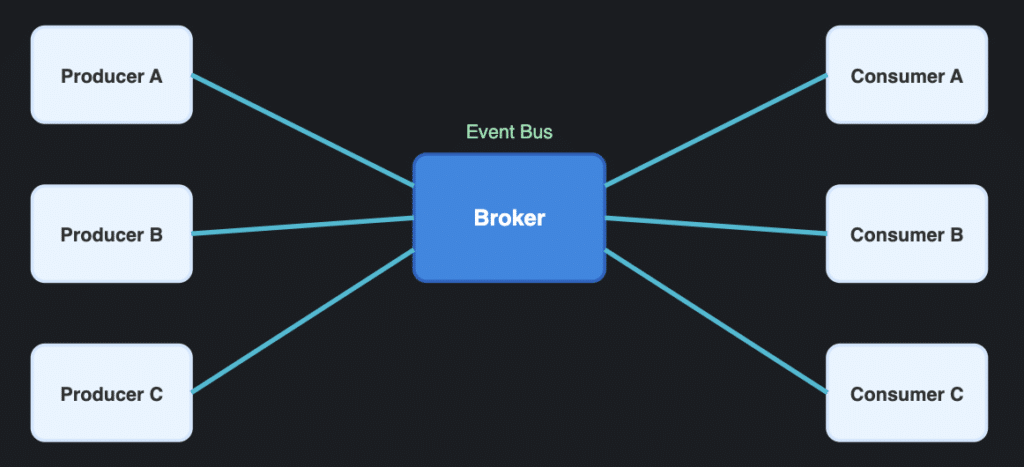

Example diagram of an event-driven architecture
The key attributes of this pattern include:
- Loose coupling between event producers and consumers
- Asynchronous communication model
- Can use event mediators (event brokers) or direct publish-subscribe mechanisms
- Naturally accommodates real-time processing
As mentioned, this pattern is really well suited for systems requiring real-time data processing, complex event processing, or reactive behavior. For example, a stock trading platform might use events to notify various system components about price changes, allowing each component to react appropriately without tight coupling.
Service-oriented architecture (SOA)
Although a bit dated and not as popular as it once was, service-oriented architectures are still commonly used, especially in the .NET and Java realms. SOA structures applications around business-aligned services that are accessible over a network through standard protocols. It emphasizes service reusability and composition. Like microservices, the services in SOA are not as detailed as those in a typical microservices architecture.

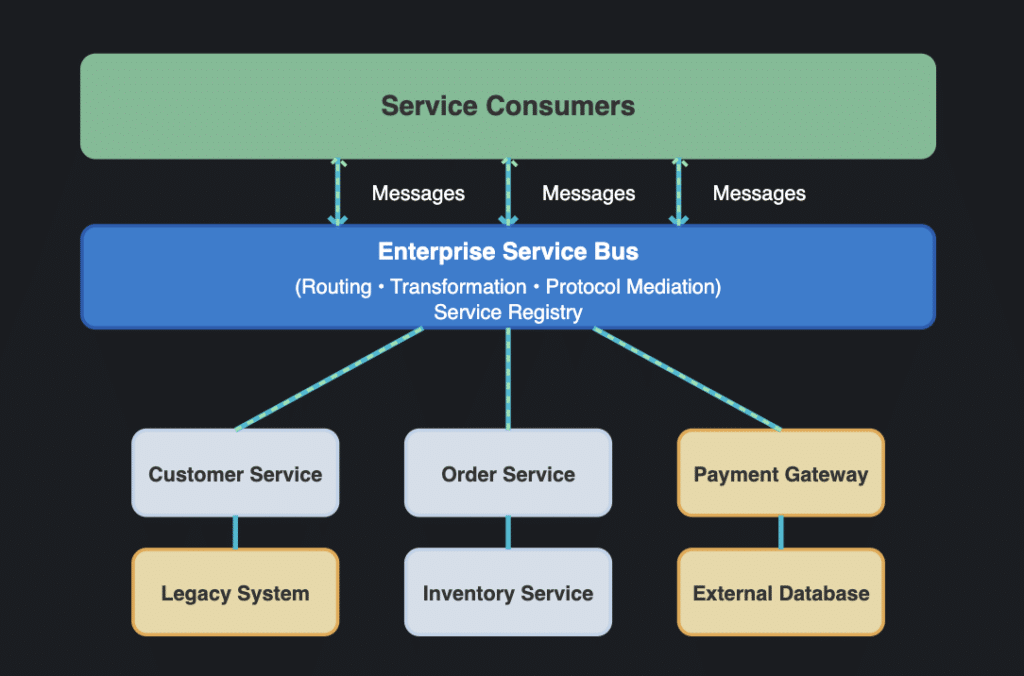

Diagram of a sample SOA architecture
The key attributes of this pattern include:
- Services expose well-defined interfaces
- Services can be composed to create higher-level functionality
- Often includes a service bus for mediation and orchestration
- Typically more coarse-grained than microservices
Over the years, SOA has morphed from traditional SOA to a more modern approach. Traditional SOA uses an Enterprise Service Bus (ESB); modern SOA overlaps with microservices but retains the traditional SOA’s principles of service reuse and contract standardization. Modern SOA is lightweight, service-to-service communication, unlike a central bus that is typically used in a traditional architecture.
Regardless of the approach, this pattern can work well for enterprises with multiple applications that can share services and standardized integration. For example, an insurance company might expose claim processing, policy management, and customer information as services that can be reused across multiple applications.
Domain-driven design (DDD)
DDD itself is not an architectural pattern, but it guides architectural decisions by highlighting domain boundaries and the importance of business logic. It frequently influences patterns like microservices or modular monoliths.

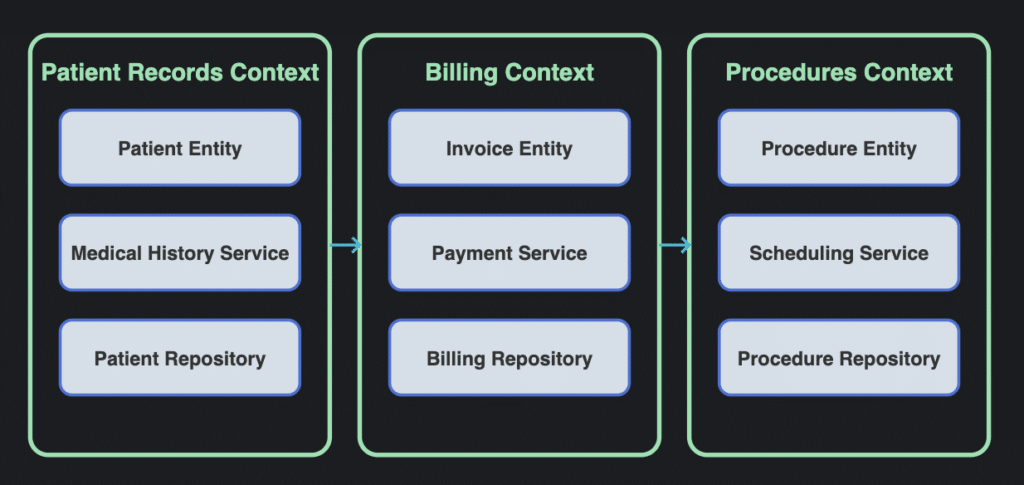

A diagram showing how different contexts work with a DDD architecture
The key attributes of DDD that make it applicable in this context include:
- Bounded contexts with clear boundaries
- Aligns software models with business domain models
- Uses ubiquitous language shared by developers and domain experts
- Separates core domain logic from supporting functionality
This approach works well for complex business domains where model clarity and business rules are key. For example, a healthcare system might have separate models for patient records, billing, and medical procedures. Using DDD to design and implement such a system would be well-suited.
Hexagonal architecture (ports and adapters)
Sometimes, older patterns are bundled together with more modern ones. One such pattern is the hexagonal architecture, which separates the core application logic from external concerns by defining ports (interfaces) and adapters that implement those interfaces for specific technologies. This is often used in conjunction with microservices.

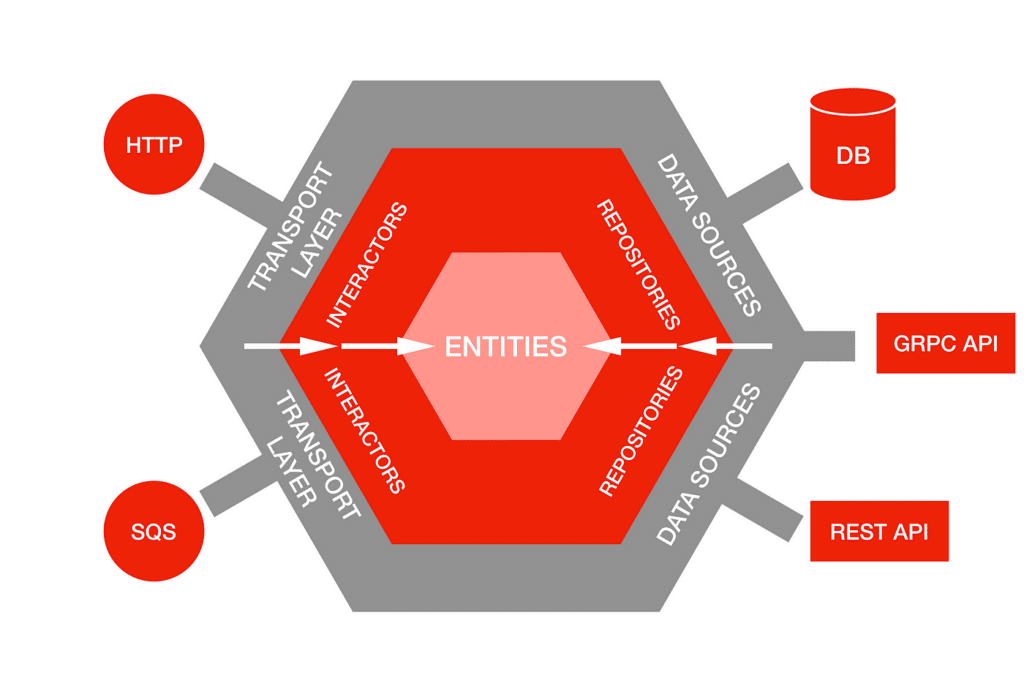

Example of how hexagonal architectures work. Original courtesy of Netflix Tech Blog
The key attributes of the hexagonal architecture pattern include:
- Business logic has no direct dependencies on external systems
- External systems interact with the core through adapters
- Facilitates testability by allowing external dependencies to be mocked
- Supports technology evolution without impacting core functionality
Using this pattern is typically helpful for systems that need to integrate with multiple external systems or where technology choices may evolve over time. For example, a payment processing system might define ports for different payment providers. Following this pattern would allow new providers to be added without changing the core payment logic.
CQRS (Command Query Responsibility Segregation)
CQRS (Command Query Responsibility Segregation) has been widely used since it was introduced by Greg Young in 2009. It separates read and write operations into separate models for independent optimization. It is commonly paired with Event Sourcing in an event-driven architecture.

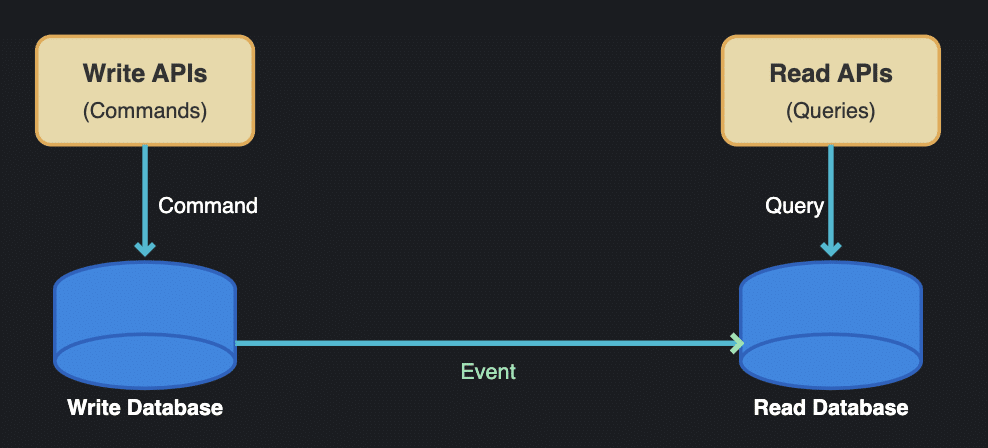

Simple diagram of how the CQRS pattern works
The key attributes of this pattern include:
- Separate models for reading and updating data
- Can use different data stores optimized for each purpose
- Often paired with event sourcing for audit trails and temporal queries
- May involve eventual consistency between read and write models
The pattern itself offers some good flexibility when implemented. CQRS can be simplified by using the same database with different models instead of separate data stores. This approach is more straightforward for systems that don’t need full auditability or extreme performance optimization. It offers a range of implementation options, from logical separation to complete physical separation.
Systems with intricate domain models, high read-to-write ratios, or collaborative domains prone to conflicts are best suited for this pattern. For instance, an analytics platform could benefit from a customized read model for complex queries alongside a basic write model for data input.
Software architecture patterns vs. design patterns
While related, software architecture patterns and design patterns address different levels of abstraction in software development. Understanding the distinction helps development teams apply each of them appropriately.
Architecture patterns
Architecture patterns operate at the highest level of abstraction, defining the overall structure of an application or system. They determine how:
- The system is divided into major components
- These components interact and communicate
- The system addresses qualities like scalability, availability, and security
Architecture patterns affect the entire application and typically require significant effort to change once implemented. They’re usually chosen early in the development process based on business requirements and quality attributes.
Design patterns
Design patterns, popularized by the “Gang of Four,” operate at a more detailed level, addressing common design problems within components. They provide:
- Solutions to recurring design challenges in object-oriented programming
- Best practices for implementing specific functionality
- Guidelines for creating flexible, maintainable code
Unlike architecture patterns, design patterns apply to specific parts of the system and can be implemented or changed without affecting the overall architecture. Examples include Factory, Observer, and Strategy patterns.
The complementary relationship
Architecture and design patterns complement each other when building enterprise systems. Here’s how:
- Architecture patterns establish the overall structure
- Design patterns help implement the details within that structure
- Multiple design patterns can be used within a single architecture pattern
- Some patterns (like model-view-controller) can function at both levels, depending on the scope
When developers understand both types of patterns, architecture, and design, and how they interrelate, they can create well-structured systems at both macro and micro levels.
Comparative analysis of enterprise architecture patterns
Digging back into the particulars of the enterprise architecture patterns we covered above, understanding the benefits and challenges of each helps to choose which to apply and when. To do this, selecting the correct architecture pattern requires understanding each pattern’s trade-offs. Let’s compare the major enterprise architecture patterns across several dimensions:
| Pattern | Scalability | Flexibility | Complexity | Deployment |
| Layered | Moderate | Low | Low | Monolithic |
| Microservices | High | High | High | Independent services |
| Event-Driven | High | High | High | Varies |
| SOA | Moderate | Moderate | Moderate | Service-based |
| Hexagonal | Moderate | High | Moderate | Varies |
| CQRS | High | Moderate | High | Separate read/write |
Performance considerations
Between the different patterns, performance varies greatly.
Layered Architecture: Can introduce performance overhead due to data passing between layers. Vertical scaling is typical.
Microservices: Enables targeted scaling of high-demand services but introduces network latency between services. Distributed transactions can be challenging.
Event-Driven Architecture: Excels at handling high throughput with asynchronous processing but may face eventual consistency challenges.
SOA: The Service bus can become a bottleneck under high load. More coarse-grained than microservices, potentially limiting scaling options.
Hexagonal Architecture: Performance depends on implementation details and adapter efficiency, but generally supports optimization without affecting core logic.
CQRS: Can dramatically improve read performance by optimizing read models, though synchronization between models adds complexity.
Maintenance and evolution
Similar to performance, Long-term maintainability varies by pattern:
Layered Architecture: Easy to understand, but can become rigid over time. Changes often affect multiple layers.
Microservices: Easier to maintain individual services, but requires advanced operational infrastructure. Service boundaries may need to evolve over time.
Event-Driven Architecture: Flexible for adding new consumers, but event schema changes can be hard to propagate.
SOA: Service contracts provide stability but can become outdated. Service versioning is key.
Hexagonal Architecture: Highly adaptable to changing external technologies while keeping core business logic.
CQRS: Separate read and write models allow independent evolution, though synchronization logic requires careful management.
In reality, many enterprise applications use hybrid architectures, combining elements of different patterns to address specific needs. For example, a system might use microservices overall, but CQRS within specific services or event-driven principles are used for integration, while using a layered architecture within components.
How to choose the right architecture pattern for enterprise
Selecting the appropriate architectural pattern is a crucial decision that significantly influences the future of your application. It is essential to thoroughly consider and carefully select the architectural pattern that best suits your use case. Follow the steps below to ensure that all aspects are thoroughly assessed and that the chosen pattern aligns with the application’s requirements.
1. Identify key requirements and constraints
Start by clearly defining what your system needs to do. This includes looking at factors such as:
- Functional requirements: The core capabilities the system must provide
- Quality attributes: Non-functional requirements like performance, scalability, and security
- Business constraints: Budget, timeline, and existing technology investments
- Organizational factors: Team size, expertise, and structure
The insights from this assessment usually help to quickly narrow things down. However, it’s important to remember that no architecture can optimize for all of these qualities at the same time.
2. Assess your domain complexity
Next, consider the nature of your business domain, as it will also influence your choice of architecture. Simple domains with well-known, stable requirements might benefit from simple layered architectures, while complex domains with evolving business rules often benefit from Domain-Driven Design, potentially combined with microservices. Data-intensive applications might use CQRS to separate reading and writing. Integration-heavy scenarios usually require service-oriented or event-driven approaches. Having a good understanding of the domain complexity will give further insights into what architecture patterns will and won’t work well for the system at hand.
3. Consider organizational structure
Conway’s Law says systems tend to reflect the communication structures of the organizations that design them. Large teams with specialized skills can work well with microservices, each owned by a cross-functional team. Small teams might struggle with the operational complexity of highly distributed architectures. Geographically distributed teams might benefit from clearly defined service boundaries and interfaces. Organizational structure can definitely make certain patterns easier to implement and to maintain in the long term.
4. Evaluate the technology ecosystem
Unless you are starting a project entirely from scratch, certain technologies will likely already be ingrained within your engineering organization. Therefore, both existing and planned technology investments should play a role in shaping your architectural decisions. For example, legacy system integration requirements might favor SOA or hexagonal architecture, cloud-native development often aligns well with microservices and containerization, and real-time processing needs point toward event-driven architectures. More than anything else on this list, the technology ecosystem you’re playing within can be one of the largest factors in dictating which patterns are feasible.
5. Plan for growth and change
While current requirements are crucial, it is equally important to consider the future needs of the system. Ensure that the selected patterns can support future functionalities. Changing the underlying architecture of an application is a complex process, so it is essential to carefully consider the following before making a final decision :
- Scale: Will you need to support 10x or 100x growth in users or transactions?
- Agility: How often do you expect major feature additions or changes?
- Regulatory landscape: Are compliance requirements going to change significantly?
With these and other potential factors in mind, you can then test your patterns of choice to make sure that they can support the future needs of your business without a massive overhaul.
6. Leverage architectural observability with vFunction
For enterprises with existing applications, the journey from the current architecture to the target state requires an understanding of the current state. This is where architectural observability through vFunction comes in.
vFunction helps architects and developers understand the patterns used within their applications
vFunction helps organizations modernize existing applications by providing AI-powered analysis and modernization capabilities. The platform helps with:
Architectural discovery: vFunction analyzes application structure and dependencies, creating a comprehensive map of your current architecture that serves as a foundation for modernization planning.
Service identification: The platform identifies service boundaries within monoliths, so architects can determine the best decomposition into microservices or other modern architectural components.
Refactoring automation: vFunction provides specific guidance and automation for extracting and refactoring code to match your target architecture pattern, reducing the risk and effort of modernization.
For example, Turo used vFunction to enable the car-sharing marketplace to speed up its monolith to microservices journey, improve developer velocity, and prepare its platform for 10x scale. By providing architectural observability, vFunction bridges the gap between architectural vision and reality, making modernization projects more predictable and successful.
7. Implement incrementally
Lastly, once you’ve chosen a pattern, consider an incremental implementation. Compared to a big-bang implementation, where everything is deployed immediately, rolling things out incrementally is a better option that is less risky. Of course, this depends on your chosen architecture having the flexibility to support it. You’ll need to:
- Start small and apply the pattern to a small scope first to validate assumptions.
- Leverage the Strangler pattern to gradually migrate functionality from legacy systems to the new architecture.
- Continuously evaluate and regularly check if the chosen architecture is delivering expected benefits.
Following these steps, from deciding on the architecture to implementing it, the chances of success are much higher than going into this type of project without a plan.
Conclusion
Enterprise software architecture patterns provide proven blueprints for building complex systems that can withstand the test of time and changing business needs. By understanding the strengths, weaknesses, and use cases for each pattern, architects can make informed decisions that align technology with business goals.
The most successful enterprise architectures rarely follow a single pattern dogmatically. Instead, they thoughtfully combine elements from different patterns to address specific requirements, creating hybrid approaches tailored to their unique context. This pragmatic approach, guided by principles rather than dogma, tends to yield the best results.
As digital transformation accelerates, the ability to choose and implement the right architecture patterns becomes more critical for business success. Organizations that master this skill will build systems that are not just functional today but adaptable to tomorrow’s challenges.
Whether you’re building new enterprise systems or modernizing legacy applications, investing time in architectural planning pays off in reduced development costs, improved maintainability, and greater business agility. And with vFunction, the journey to modern architectures is more accessible even for organizations with large legacy codebases.
The right architecture won’t just solve today’s problems — it will create a foundation for tomorrow’s innovations. Choose wisely.Ready to modernize your enterprise application architecture? Learn more about how vFunction can help you get there faster with AI-powered analysis and automated modernization. Contact our team today to find out more.
